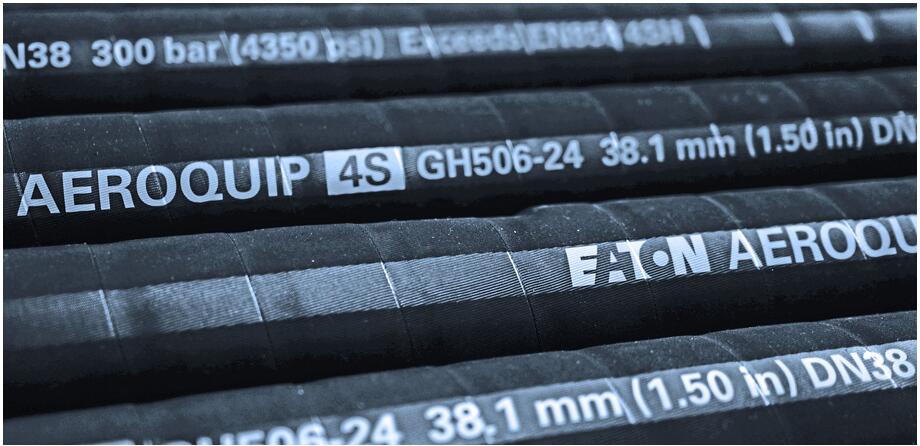

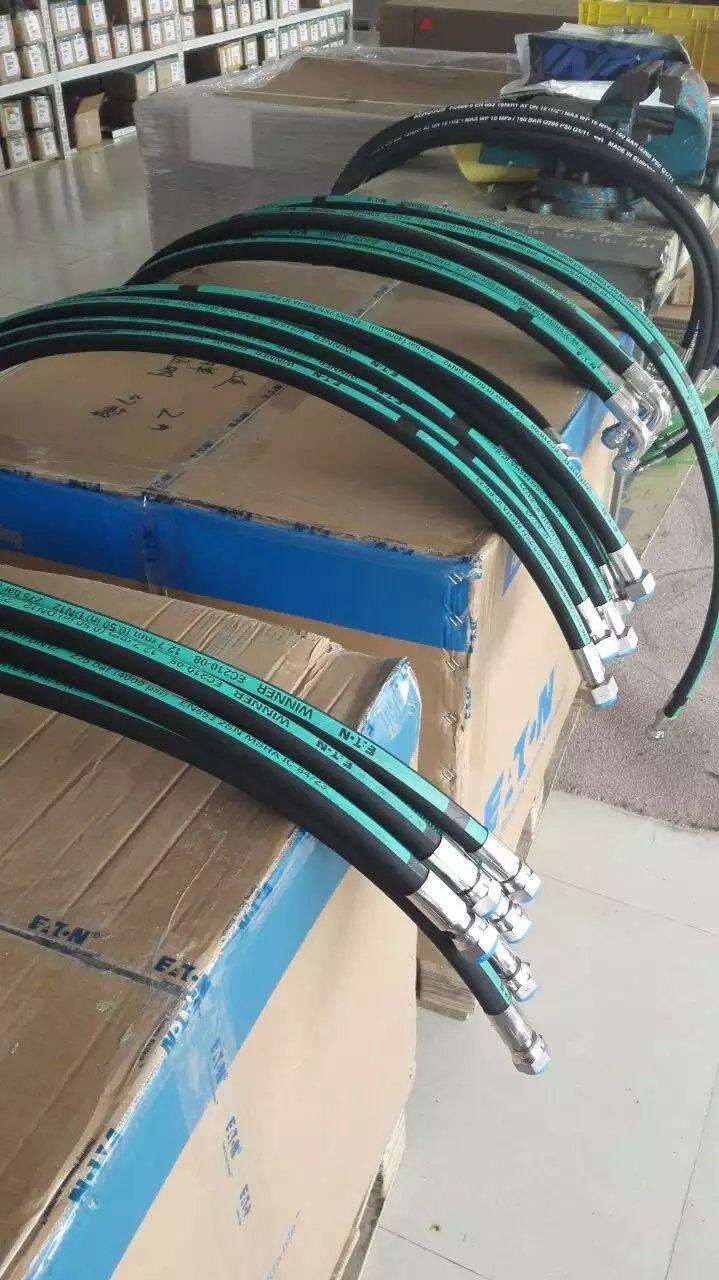

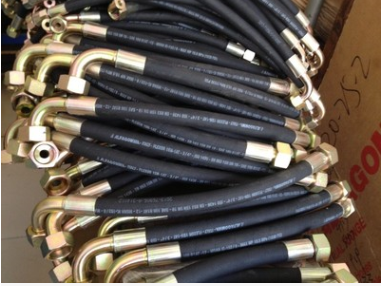

Four layer winding 4SH GH506 series Aeroquip standard type

  •

Should use:High pressure oil base fluid hydraulic transmission system (high temperature environment operation)

Inner glue:Synthetic Rubber

Reinforced material:Four layers of steel wire winding reinforced layer

Outer adhesive:Synthetic rubber outer layer

Temperature degree:-40℃<+100℃

Application standard:SAE EN856 4SH

Product model(Part.No) Inside diameter(I.D) Outside diameter(O.D) Working Pressure(W.P) Blasting pressure(B.P) Weight(W) Bending Radius(B.R)
mm /inch mm bar /psi bar/psi kg/m mm
GH506-12 19.1/0.75 32.3 420/6090 1680/24360 1.49 280
GH506-16 25.1/1.00 38.4 380/5510 1520/22040 2.05 340
GH506-20 31.8/1.25 45.5 350/5070 1400/20300 2.54 460
GH506-24 38.1/1.50 53.6 300/4350 1200/17400 3.27 560
GH506-32 50.5/2.00 68.1 250/3625 1000/14500 4.58 700
